• Country
• United States of America (USA)

• Manufacturer / Brand
• Precision Apparatus Co. (Pacotronics); Brooklyn - Elmhurst - Glendale, NY / Chicago, IL

• Year
• 1939 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 181282

• Wave bands
• - without

• Power type and voltage
• Dry Batteries

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org

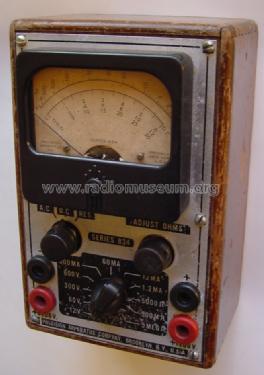

• Model: Volt-Ohm Meter Series 834 - Precision Apparatus Co.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 115 x 180 x 95 mm / 4.5 x 7.1 x 3.7 inch

• Notes
• The Volt-Ohm Meter Series 834 has nearly an equal look as Series 832S, but was already made in Brooklyn, NY.

  Six DC voltage ranges to 1200 Volts. Six AC voltage ranges to 2400 Volts. Four DC current ranges to 600 mA. Three resistance ranges to 5 MOhms. Six decibel ranges to + 62 dB.

• Price in first year of sale
• 16.95 USD

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
