Oscilloscope 300C (Series C)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Precise Development Corp.; Oceanside, Mineola, NY

• Year
• 1965 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 270029

• Picture

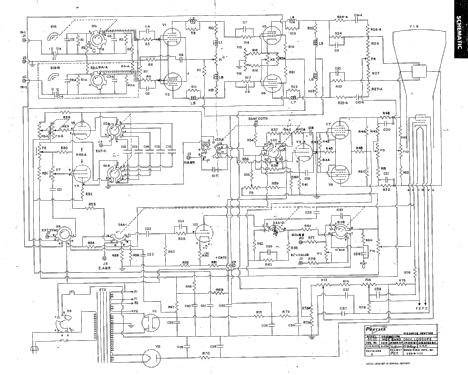

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• 6BC5 6BC5 6CB6 6CB6 12AX7 6BC5 6BC5 12AX7 6X5 5Y3 7JP1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope 300C - Precise Development Corp.;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 11 x 14 x 19 inch / 279 x 356 x 483 mm

• Notes

• Oscilloscope in kit or assembled with 7 "tube, 5MHz bandwidth vertical amplifier, 10mV minimum input, 3.94 mV / cm. Trigger, magnifier X 10, calibrator.

  Oscilloscopio in kit e montato con tubo da 7", amplificatore verticale 5MHz banda passante, 10mV di ingresso minimo, 3.94 mV/cm. Trigger, magnifier X 10, calibratore.

  Price is for kit.  Factory assembled price is $229.95.

• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Price in first year of sale
• 169.95 USD

• Mentioned in
• Radio Electronics (U.S. Magazine) (May 1965, page 21)

• Author
• Model page created by Mauro Emilio Gino Bellini. See "Data change" for further contributors.
