Voltage Regulated VTVM 9071 (9071K, 9071W)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Precise Development Corp.; Oceanside, Mineola, NY

• Year
• 1954

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 196830

• Picture

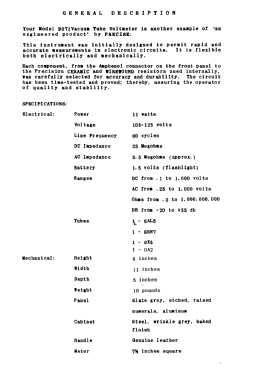

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AL5 6SN7 6X5 0A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Voltage Regulated VTVM 9071 - Precise Development Corp.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 8 x 11 x 5 inch / 203 x 279 x 127 mm

• Notes

• 4 functions selector: -DC volts; +DC volts; Ohms; AC volts
  5 ranges ohms Rx 1; Rx 10; Rx 1.000; Rx 10.000; Rx 1 MEG
  5 ranges volts AC/DC: 5V; 25V; 250V; 500V; 1000V.
  Zero scale potentiometer adjust
  0 ohm pointer potentiometer adjust
  Scale: 0 to 1000 ohms full scale
  Decibels: -20 to + 23 dB
  Big size VU (7 inch)
  AC/ ohms banana connector
  DC volts connector
  common banana conector.

  Price is for kit (9071K).  Also available factory wired for $49.95 (9071W).

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Price in first year of sale
• 35.95 USD

• Mentioned in
• Radio Electronics (U.S. Magazine) (September 1954, page 20)

• Author
• Model page created by Dirson Willig. See "Data change" for further contributors.
