• Country
• Soviet Union

• Manufacturer / Brand
• Precision Mechanics Works; Novosibirsk

• Year
• 1962 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 302601

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6Н2П 6Н1П 6П14П 6Е5С

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker

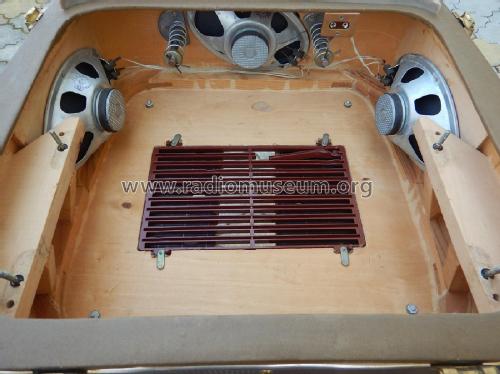

• 3 Loudspeakers

• Power out
• 1.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

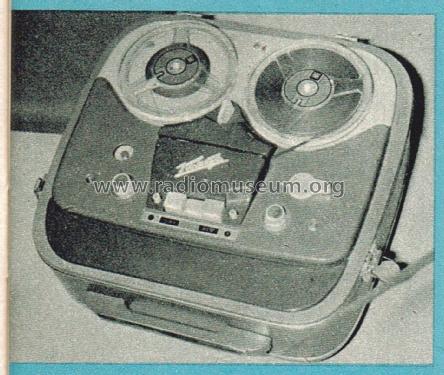

• Model: Комета МГ-201 Comet MG-201 - Precision Mechanics Works;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 350 x 220 mm / 15.7 x 13.8 x 8.7 inch

• Notes

• Three velocities: 19.05, 9.53, 4.76 cm/s

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 200.00 RUB

• Literature/Schematics (2)
• Справочник:Магнитофоны.Курбатов Н.В. Яновский Е.Б. 1970

• Author
• Model page created by Vladimir Manannikov. See "Data change" for further contributors.
