Midget Radio Kit cream
Premier Radio Co. Ltd. (B. H. Morris & Co. (Radio) Ltd.); London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Premier Radio Co. Ltd. (B. H. Morris & Co. (Radio) Ltd.); London
- Year
- 1948
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 79301
- Number of Tubes
- 3
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Midget Radio Kit [cream] - Premier Radio Co. Ltd. B. H.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.25 x 6.75 x 6 inch / 286 x 171 x 152 mm
- Notes
-
also brown case.
The AC version uses the listed tubes, the AC/DC version uses the 25A6 instead of the 6V6 final tube.
- Mentioned in
- Radio! Radio! (p.178)
- Literature/Schematics (1)

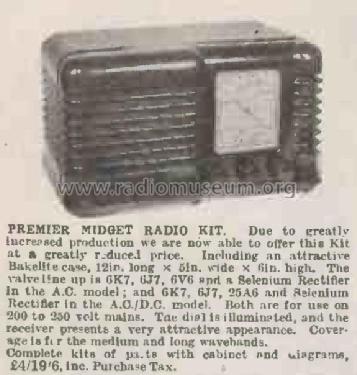

- Wireless World (The), London (WW, 79) (Jan 1950 Page ad 4.)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
