• Country
• United States of America (USA)

• Manufacturer / Brand
• Princeton Applied Research (PAR); Princeton, NJ

• Year
• 1974 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 357829

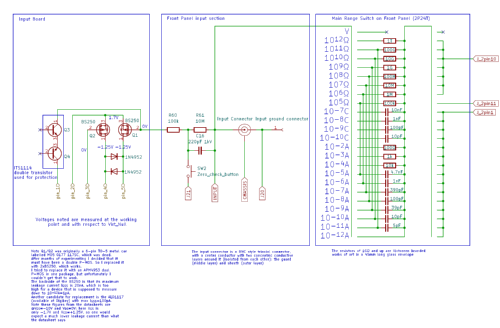

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes

• Number of Transistors
• 29

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Electrometer 136 - Princeton Applied Research PAR

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 222 x 192 x 250 mm / 8.7 x 7.6 x 9.8 inch

• Notes

• An Electrometer, in essence, is a multimeter with an incredibly high input impedance. In this case, in the order of 10¹² Ω, or 1TΩ. This electrometer has a digital readout unit with nixie tubes, made by Analogic, 2000 counts and a +/- sign.

  This electrometer can measure Voltage, Resistance, Current and Charge, in the following settings:

  DC Voltage ranges: 0.2V, 2V, 20V, 200V

  Resistance ranges: 2×10⁵ - 2×10¹² Ω (in steps 10×)

  Current ranges: 2×10⁻¹² - 2×10⁻² A (in steps 10×)

  Charge ranges: 2×10⁻¹º - 2×10⁻⁷ C (in steps 10×; 1C = 1 coulomb = 1 ampere×second)

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Author
• Model page created by Charles Ouweland. See "Data change" for further contributors.
