• Country
• Belgium

• Manufacturer / Brand
• Prisma TV; Antwerpen

• Year
• 1956 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 261556

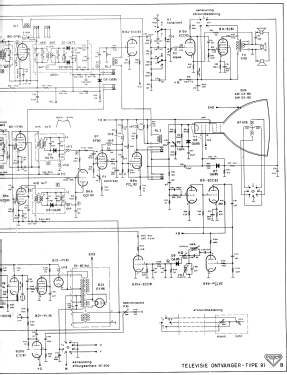

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 ECF80 EF80 PCL82 ECC82 EF80 EF80 EF80 ECC83 EL84 85A2 ECC81 PL82 EAA91 ECC82 ECC81 PL36 PY81 EY86 PY82 PY82 AW53-80

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 91 [Tafelmodel] - Prisma TV; Antwerpen

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 560 x 620 x 450 mm / 22 x 24.4 x 17.7 inch

• Notes

• Only VHF

  4 Normen

• Price in first year of sale
• 21,500.00 BEF

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
