Weltempfänger H88
Profex Fidelity; Europe
- Country
- Europe
- Manufacturer / Brand
- Profex Fidelity; Europe
- Year
- 1986 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350539
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 2 × 1,5 / 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Weltempfänger H88 - Profex Fidelity; Europe
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 80 x 38 mm / 7.1 x 3.1 x 1.5 inch
- Notes
-

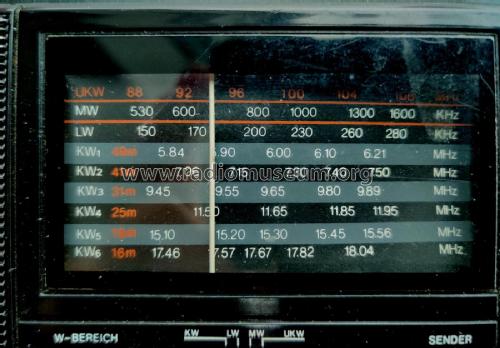

Bands:
- UKW 87,5 - 108 MHz
- MW 522-1625 kHz
- LW 150-280 kHz
- KW1 5,84-6,20 MHz
- KW2 7,1-7,5 MHz
- KW3 9,45-9,9 MHz
- KW4 11,45-11,98 MHz
- KW5 15,10-15,55 MHz
- KW6 17,45-18,06 MHz.
See also the similar models Techstar SG-792 L and Yoko H-88.
- Net weight (2.2 lb = 1 kg)
- 0.360 kg / 0 lb 12.7 oz (0.793 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
