Fuente Alimentación FAC-363-B
Promax; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Promax; Barcelona
- Year
- 1980 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 227846
Foto del manual del año 1995

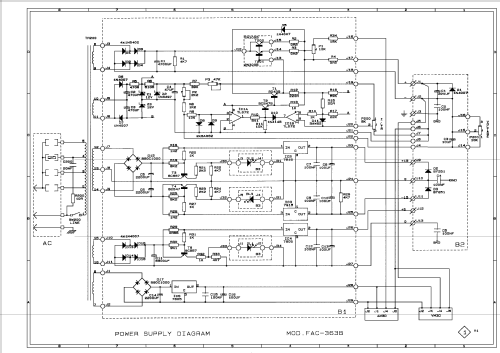

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Fuente Alimentación FAC-363-B - Promax; Barcelona
- Shape
- Rack
- Dimensions (WHD)
- 230 x 145 x 290 mm / 9.1 x 5.7 x 11.4 inch
- Notes
-
Tres salidas flotantes e independientes:
0 - 30V @ 2A,
+- 15V @ 0,5A,
+5V @ 1A
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
