• Country
• Spain

• Manufacturer / Brand
• Promax; Barcelona

• Year
• 1990 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 197418

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

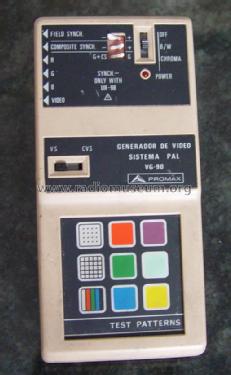

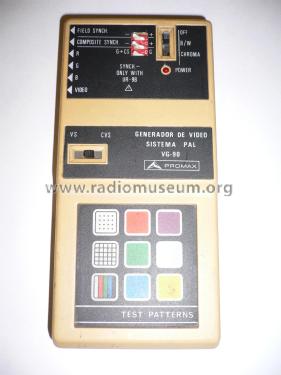

• Model: Mira Electrónica VG-90 - Promax; Barcelona

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 83 x 178 x 34 mm / 3.3 x 7 x 1.3 inch

• Notes
• Generador de video sistema PAL.

• Net weight (2.2 lb = 1 kg)
• 0.350 kg / 0 lb 12.3 oz (0.771 lb)

• Price in first year of sale
• 452.00 Euro

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
