Osciloscopio TS-5/B
Promax; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Promax; Barcelona
- Year
- 1970
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 172001

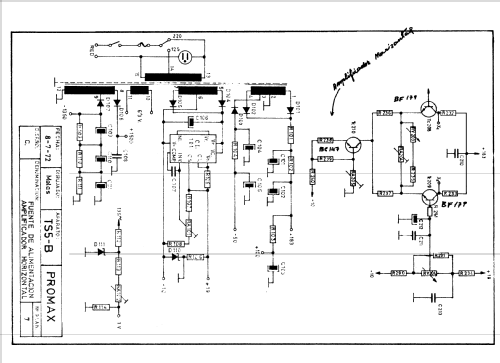

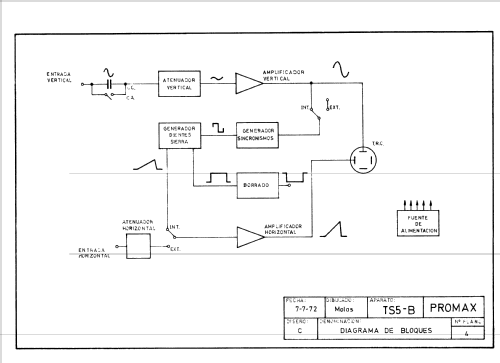

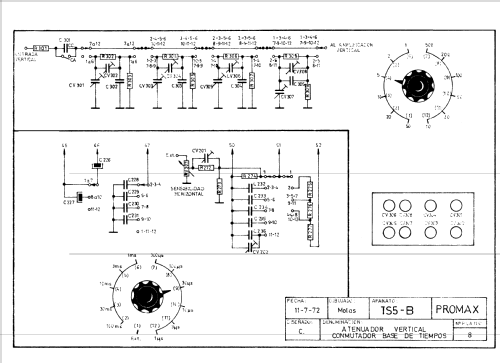

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- D13-27GH
- Number of Transistors
- 19
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

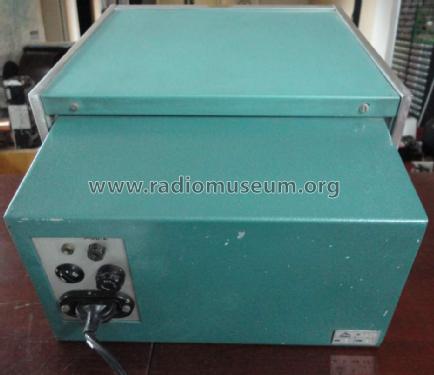

- Model: Osciloscopio TS-5/B - Promax; Barcelona
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 280 x 185 x 370 mm / 11 x 7.3 x 14.6 inch
- Notes
- Ancho de banda: CC - 8 MHz @ -3dB
Bandwidth: DC - 8 MHz @ -3dB.
Otros diodos: FLKTV 9KV 2mA; F111 (rectificador 1A/400V); SD530; 1Z5 100mA.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Literature/Schematics (1)
- -- Original-techn. papers. (Anuncio Revista Española de Electrónica 04/1973)
- Literature/Schematics (4)
- Catálogo Promax 1970
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
