• Country
• Spain

• Manufacturer / Brand
• Promax; Barcelona

• Year
• 1990 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 185897

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage and/or dry batteries / 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

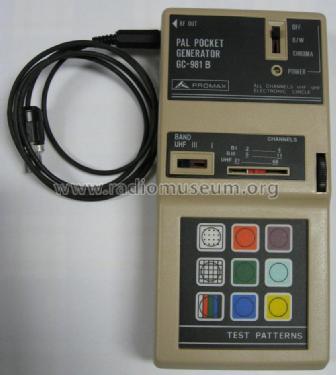

• Model: Pal Pocket Generator GC-981B - Promax; Barcelona

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 84 x 178 x 37 mm / 3.3 x 7 x 1.5 inch

• Notes
• Pal B/W-Color TV Pattern generator. All channels VHF-UHF Electronic Circle. VHF channels 2-4 ; 5-11.UHF channels 21-68.

• Net weight (2.2 lb = 1 kg)
• 0.293 kg / 0 lb 10.3 oz (0.645 lb)

• Price in first year of sale
• 452.00 Euro

• Source of data
• - - Data from my own collection

• Author
• Model page created by Gil Silva. See "Data change" for further contributors.
