- Country
- Mexico
- Manufacturer / Brand
- Punto Azul, Construcciones Electrónicas SA; Mexico - see also Blaupunkt (D)
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323494
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

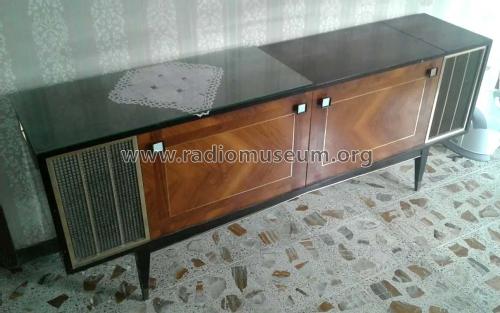

- Model: Córdoba FM Stereo - Punto Azul, Construcciones
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1730 x 680 x 380 mm / 68.1 x 26.8 x 15 inch
- Notes
-
FM stereo indicator and balance knob. Garrard record changer.
Tube data and decoder information is taken from model Jamaica which seems to have the same chassis and is probably from the same year.
The receiver might be equipped with FM Stereo Decoder 23900 (then one tube more).
This console is probably equipped with more than 2 speakers.
