5D15WG-501
Pure Oil Corp.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pure Oil Corp.; Chicago (IL)
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52311
-
- Brand: Puritan

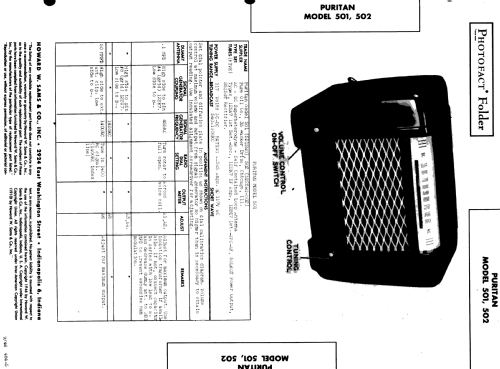

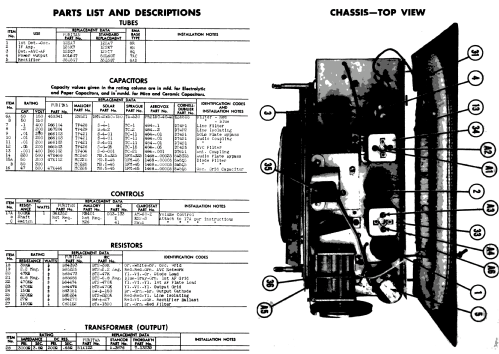

Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.9 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 5D15WG-501 - Pure Oil Corp.; Chicago IL
- Shape
- Tablemodel, with any shape - general.
- Notes
- Built-in loop antenna or external antenna. See also Rider's Perpetual, Volume 16. Sams photofact, folder 464-5, date 9-46 describes this model as Puritan 501, CH= 5D15WG. Sams photofact features the models Puritan 501 and Puritan 502 as the same schematic.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Folder 464-5 date 9-46)
