- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 311118
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / AA: 2 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

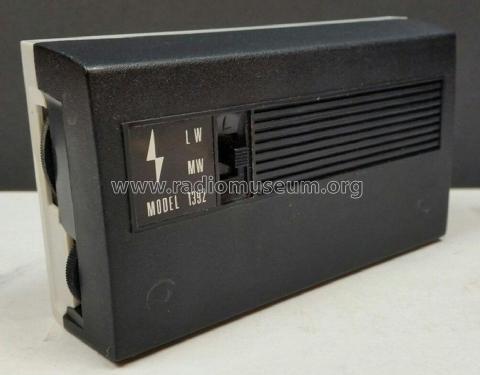

- Model: 1392 - Pye Ltd., Radio Works;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 120 x 70 x 40 mm / 4.7 x 2.8 x 1.6 inch
- Notes
-
A LW (145-270kHz) and MW (520-1610kHz) pocket transistor radio with a socket for an earphone.
- Net weight (2.2 lb = 1 kg)
- 0.226 kg / 0 lb 8 oz (0.498 lb)
- Mentioned in
- Radio And Television Servicing books (R&TVS) (Circuit diagram and alignment)
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (1971-1972 page 661)
- Author
- Model page created by David Andrews. See "Data change" for further contributors.
