• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1926

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77334

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PM1 PM2

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 9 & 108-120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: 222 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 10.75 x 7 x 7 inch / 273 x 178 x 178 mm

• Notes

• plug-in coils; Cabinet made from painted aluminium, ebonite, and wood. Wave range 260-3000 metres.

  The tapped -9V grid bias battery is clipped in below base. The HT may require a tapped battery. LT via 2V Lead Acid Accumlator.

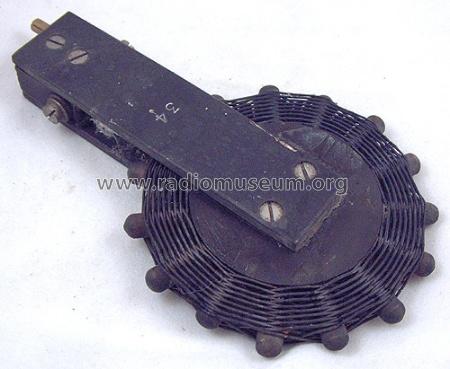

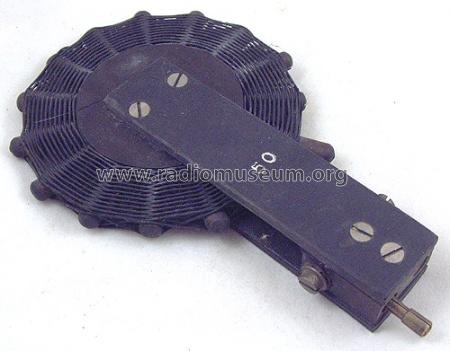

  Plug in coils on rear porcelain base.

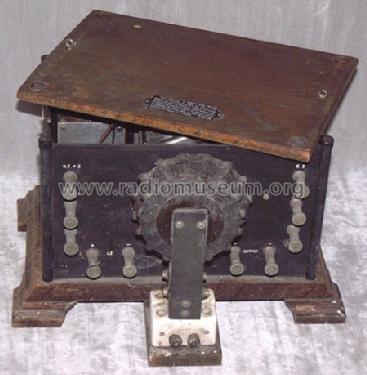

  Black painted Aluminium case with oak lid and base.

• Price in first year of sale
• 6.90 GBP

• Source of data
• Radio! Radio!

• Mentioned in
• Wireless World (The), London (WW, 79)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
