- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1929
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 77438

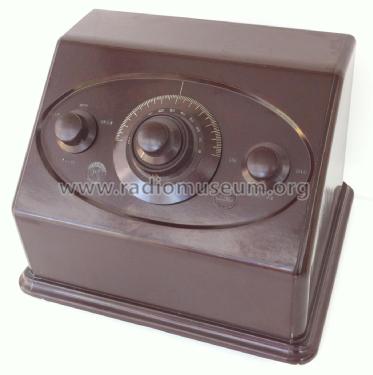

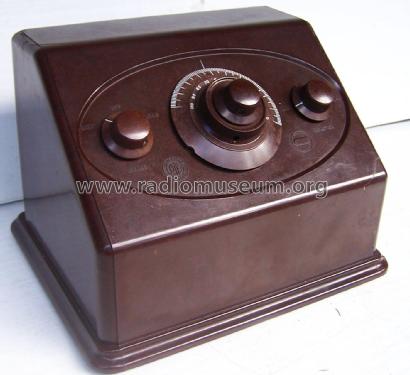

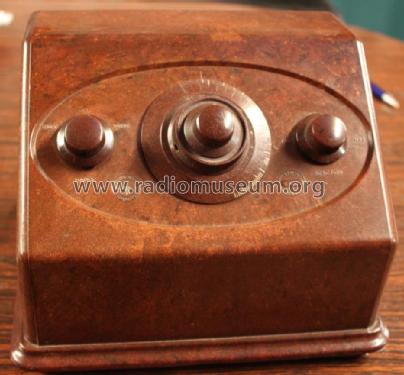

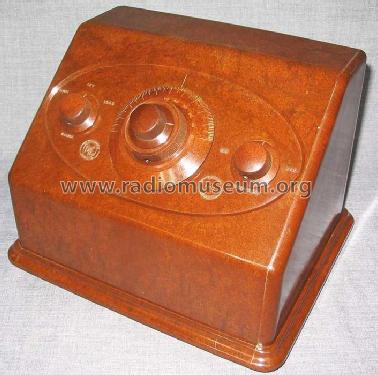

Pye model 232 front view

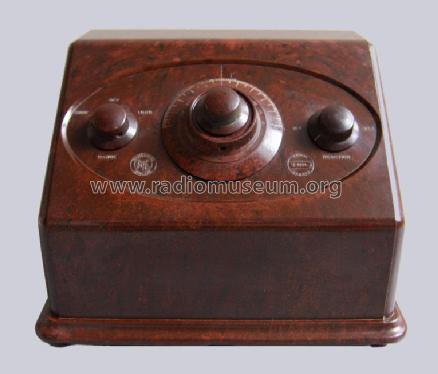

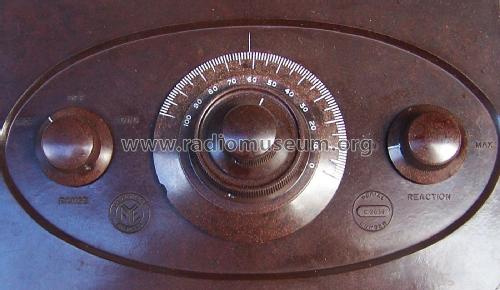

Pye 232 Front panel view

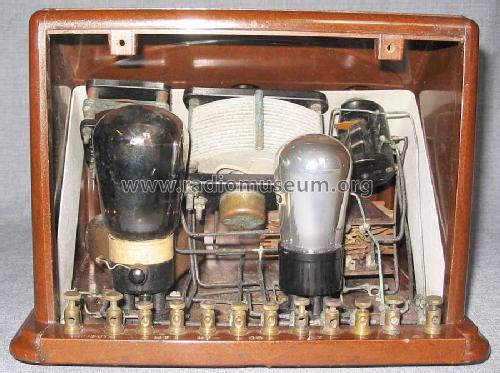

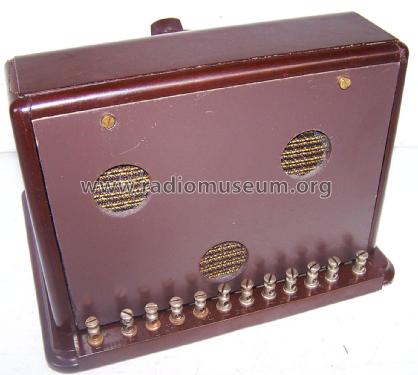

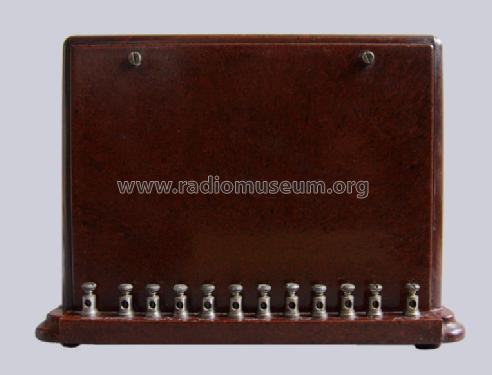

Pye model 232 rear cabinet view

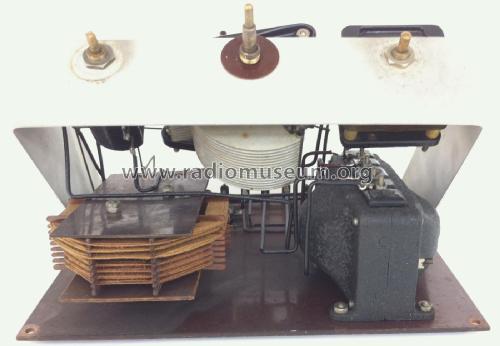

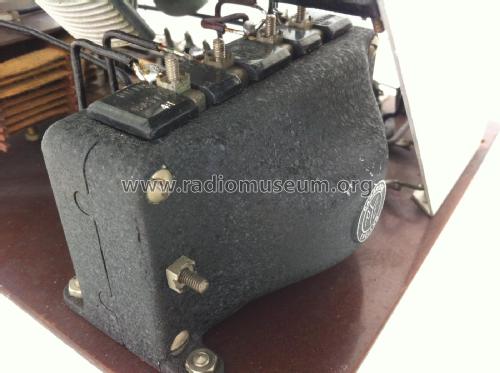

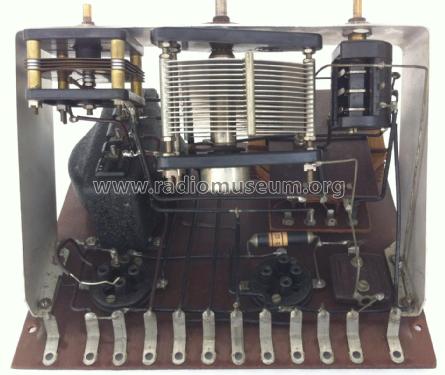

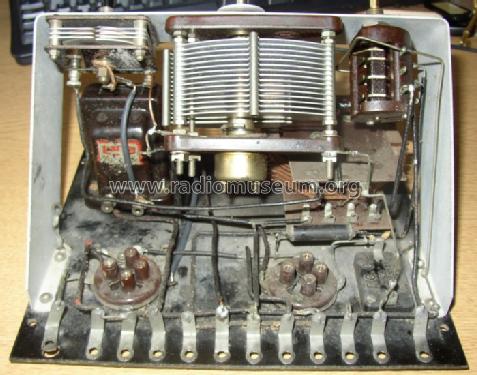

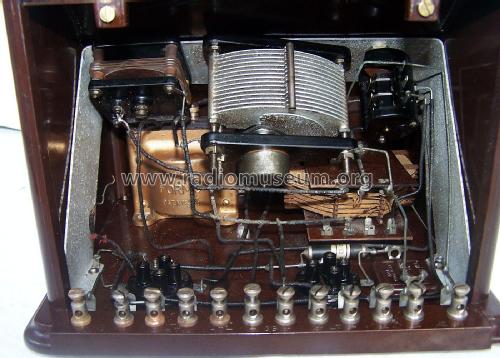

interior of set during restoration

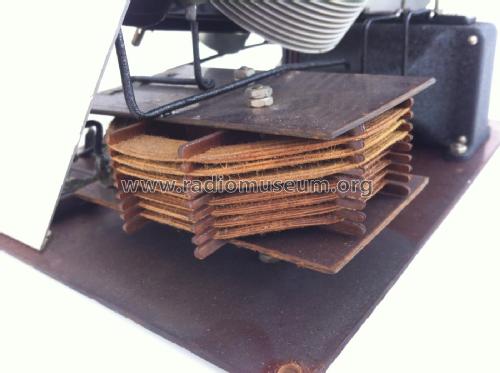

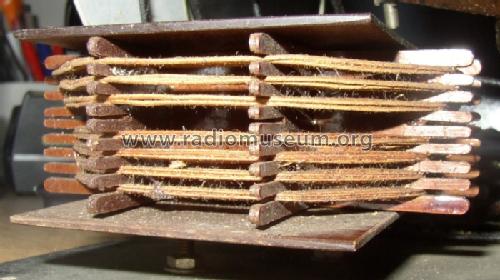

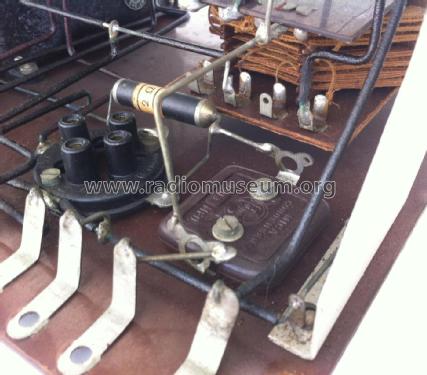

detail of tuning coil

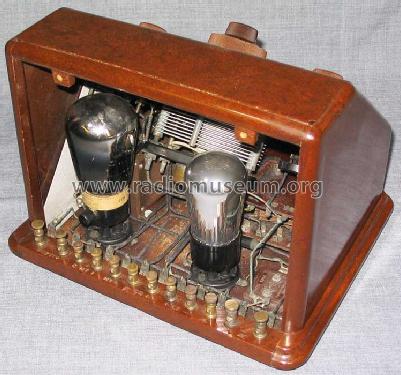

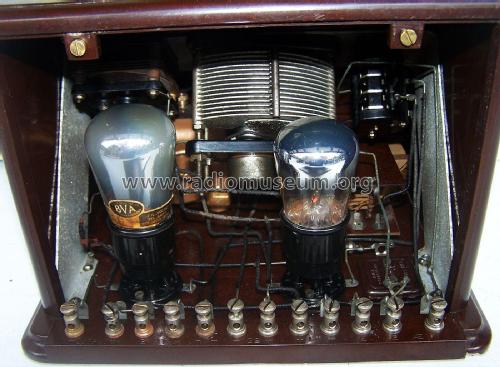

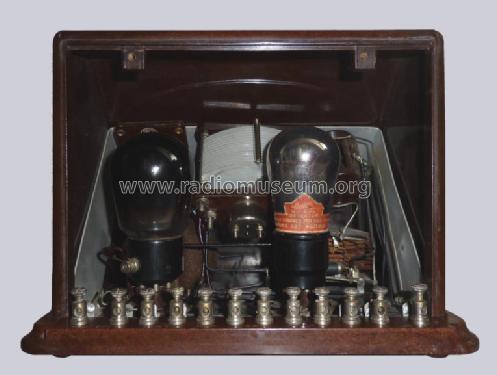

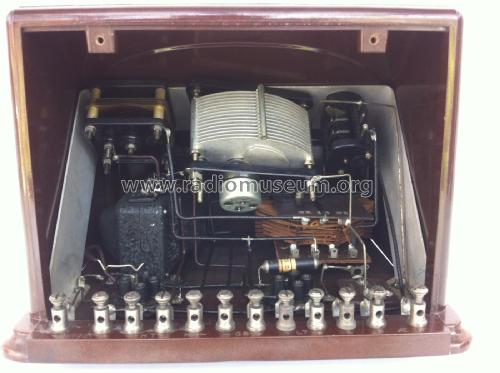

Pye model 232 rear chassis with valves view
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Valves / Tubes
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 232 - Pye Ltd., Radio Works;
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 9.5 x 7 x 8 inch / 241 x 178 x 203 mm
- Source of data
- Radio! Radio!
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
