• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1925 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 292538

• Number of Tubes
• 2

• Valves / Tubes

• Main principle
• TRF with regeneration

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

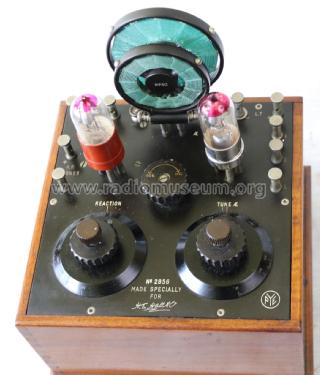

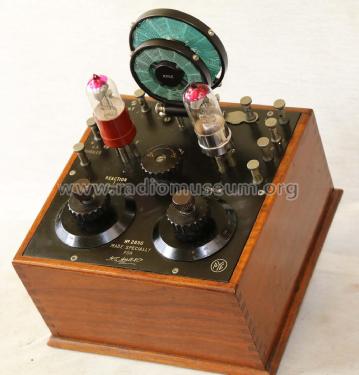

• Model: 2856 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 235 x 260 x 230 mm / 9.3 x 10.2 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 3.9 kg / 8 lb 9.4 oz (8.59 lb)

• Author
• Model page created by Norbert Konersmann. See "Data change" for further contributors.

• Other Models

• Here you find 629 models, 485 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
