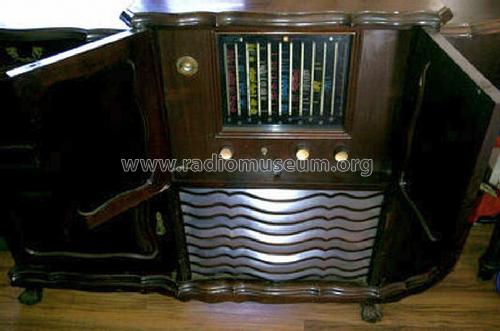

39J Console

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 220899

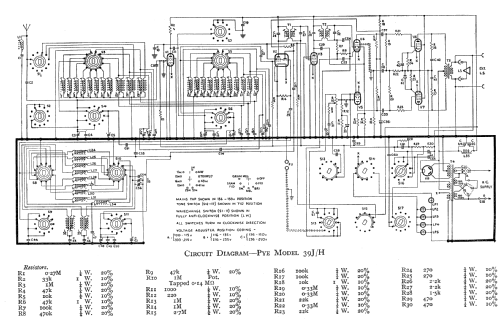

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-150; 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 14 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 39J [Console] - Pye Ltd., Radio Works;
  • Shape
  • Console with any shape - in general
  • Notes

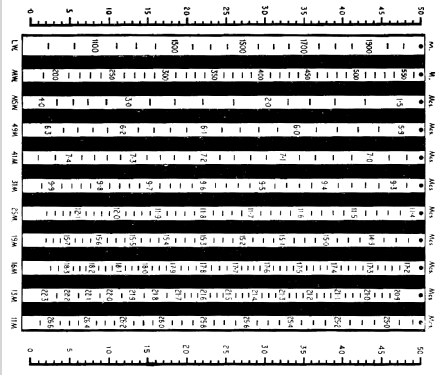

  • The data is taken from the PYE 39J/H model and therefore may be wrong. A console radio with 11 bands: LW, MW, MSW (1.5 - 4.0 MHz), SW bands; 49 metre, 41 metre, 31 metre, 25 metre, 19 metre, 16 metre, 13 metre and 11 metre. Four 6.3V dial bulbs. EF39 RF pre-amp, so triple section variable capacitor (two sets according to band). 2 x EL33 push-pull audio output using EBC33s as phase splitter and AF amplifier. 7 way switch for On/Off, 4 x tone settings and 2 "gram" tone settings.

    See also similar table models 1949 PYE 39J/H model, Irish PYE 39JH/E (adds EM34 and mesh speaker grill to PYE 39J/H), 1950 PYE A39J/H (different valves) and export models PYE PE41 and AC/DC PYE PE41U (no LW and cloth speaker cover).

  • External source of data
  • Guest Rynette Weiss, South Africa
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
