• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119987

• Number of Tubes
• 4

• Valves / Tubes

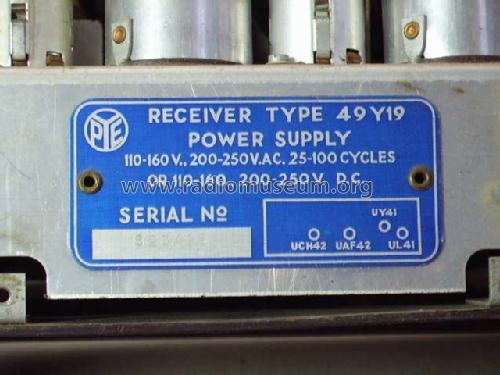

• UCH42 UAF42 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 49Y19 [valve UAF42] - Pye Ltd., Radio Works;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 210 x 155 mm / 11.8 x 8.3 x 6.1 inch

• Notes

• There is also a version using UBF80 instead of UAF42.

  Similar to Pye 49Y13

• External source of data
• Antonio Manuel Rodrigues dos Santos.

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
