- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 143895
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage and/or dry batteries / 2 & 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 67A - Pye Ltd., Radio Works;
- Shape
- Tablemodel, low profile (big size).
- Notes
-

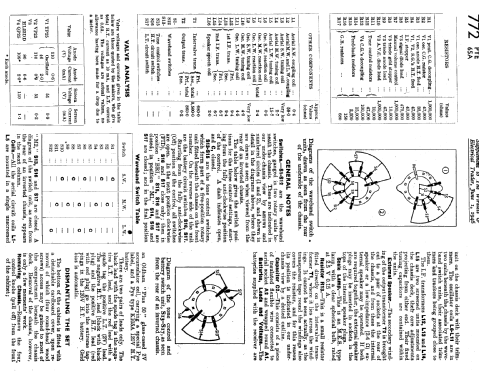

The photo seen is Bakelite, Trader sheet for 65A shows a near identical style wooden cabinet.
1946 Pye 65A and 1949 Pye P22B are nearly identical but Mazda valves with Mazda Octal base.
The 1950? Pye P47B is different case and 2 more SW bands with Mazda valves with Mazda Octal base, but otherwise similar design
Very late year for 2V Lead acid Filament valves. Possibly due to post WWII shortages.
- Price in first year of sale
- 16.00 GBP
- Source of data

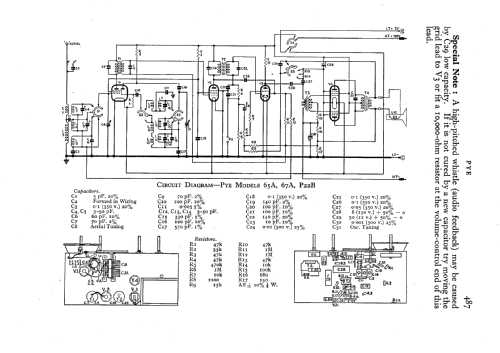

- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
