AC Mains Table Radio PE 77
Pye Ltd., Radio Works; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 312046
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90-150; 190-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: AC Mains Table Radio PE 77 - Pye Ltd., Radio Works;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 500 x 380 x 215 mm / 19.7 x 15 x 8.5 inch
- Notes
-

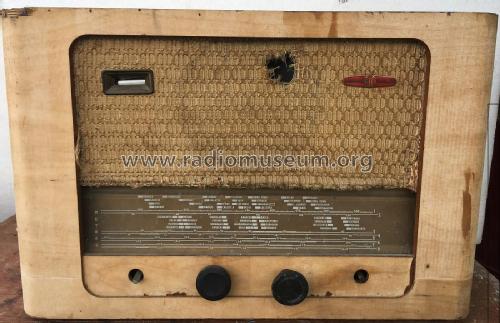

An eight band AC mains table radio in a wooden case. See also the PYE PE77MB model which is mains or battery powered.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Author
- Model page created by Uday Kalburgi. See "Data change" for further contributors.
