• Year
  • 1977 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 342887

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 240 / C: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Recorder CR-7 - Pye Industries Ltd Australia;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

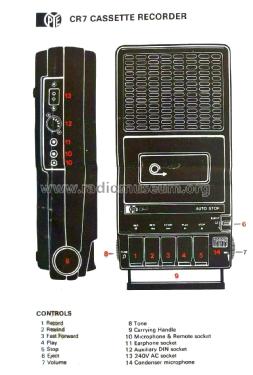

  • AC or battery-powered portable mono cassette recorder.

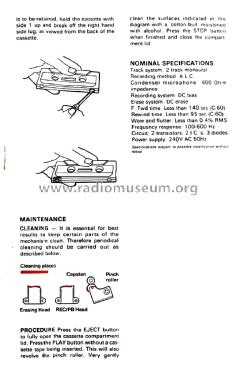

    Specifications:

    Track System: 2 track monaural
    Recording Method: ALC
    Condenser Microphone: 600 Ω
    Recording System: DC Bias
    Erase System DC Erase
    Fast Forward Time: 140 sec (C-60)
    Rewind Time: Less than 95 sec (C-60)
    Wow & Flutter: Less than 0.4% RMS
    Frequency Response: 100-6000 Hz
    Circuit: 2 Transistors, 2 ICs, 3 Diodes



  • Author
  • Model page created by Keith Ellison. See "Data change" for further contributors.
