• Country
• Australia

• Manufacturer / Brand
• Pye Industries Ltd Australia; Marrickville

• Year
• 1969–1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 323454

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-20W

• Number of Transistors
• 38

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 36875 kHz; 3 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 240 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Pye Twelve 12F-1 Ch= T25 series - Pye Industries Ltd Australia;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

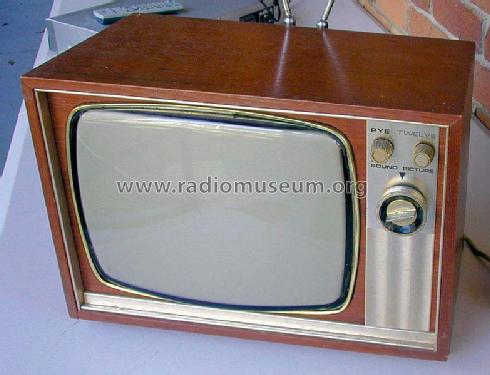

• This was a solid state 12" (31 cm) mantel B&W television that tuned the 13 standard Australian VHF channels.  It could be operated from either 240 volt AC or 12 volt DC.

  Oiled teak fashion styled timber cabinet with gold trim.

• Price in first year of sale
• 275.00 AUS $

• Mentioned in
• Mingay's Price Service (Aug 1969 to Feb 1972.)

• Literature/Schematics (1)
• - - Manufacturers Literature (Pye T25 Television Service Data, Issue 1.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (Group 13, April 1970, Page P86.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
