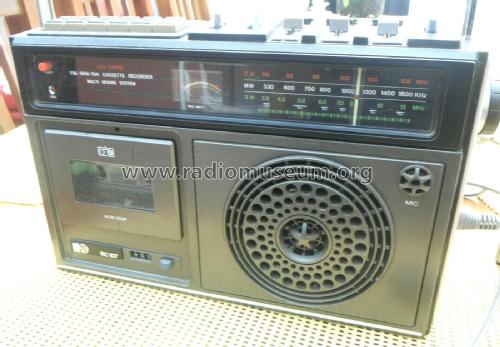

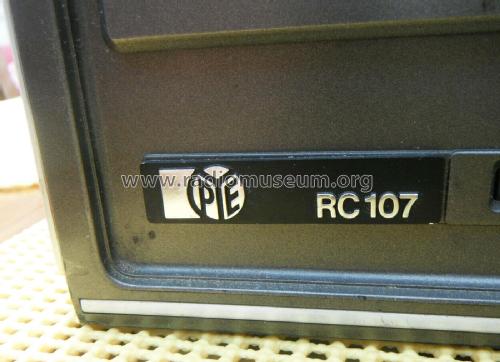

RC-107

Pye Industries Ltd Australia; Marrickville

Data
Forum
Pictures
Collections

  • Year
  • 1976/1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327917

 Technical Specifications

  • Number of Transistors
  • 23
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player

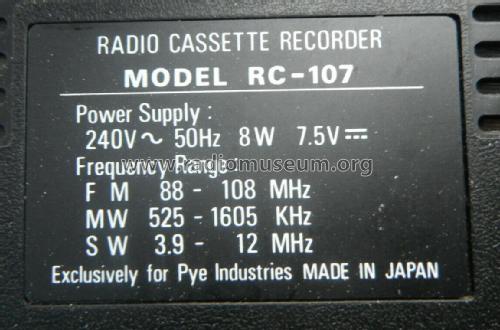

  • Power type and voltage
  • Line / Batteries (any type) / 240/ D: 1.5 x 5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 2 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RC-107 - Pye Industries Ltd Australia;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

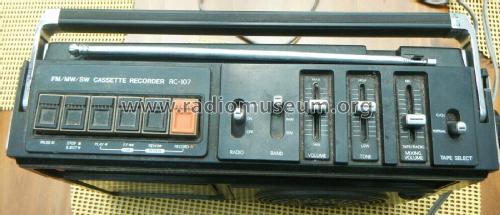

  • AC/batt., 3-band radio, MW, SW, FM, battery/VU/tuning meter, auto stop, auto level, built-in condenser mic., manual CrO2/normal tape selection, sleep switch, dial light, LED radio tuning indicator all bands, 23 transistors, 15 diodes, 1 IC, 2 LED, 2000 mW max power output, frq. response 125 - 6300 Hz.

    MADE IN JAPAN

  • Price in first year of sale
  • 99.00 AUS $
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
