• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1947

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 17898

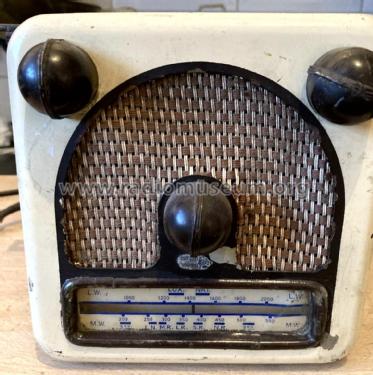

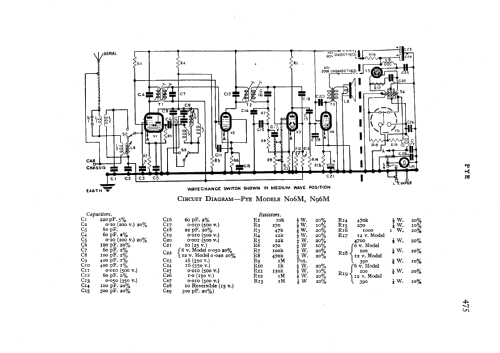

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12K8 12K7 12Q7 12A6 0Z4

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: N06M - Pye Ltd., Radio Works;

• Notes
• 12... für 12V

• External source of data
• E. Erb 3-907007-36-0

• Circuit diagram reference
• Die «Thali Schemasammlung» führt das Modell.

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Other Models

• Here you find 629 models, 485 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Pye Ltd., Radio Works; Cambridge
