• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1937

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 319898

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• TV4 IW4/350

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

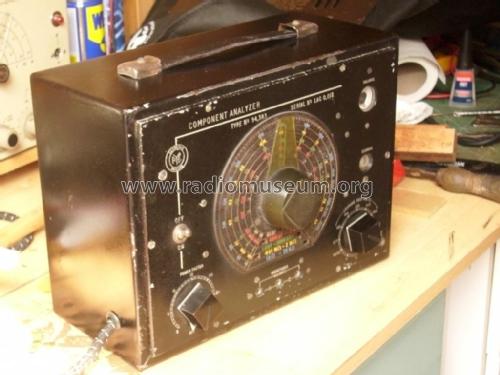

• Model: Component Analyzer 94,383 - Pye Ltd., Radio Works;

• Dimensions (WHD)
• 280 x 205 x 130 mm / 11 x 8.1 x 5.1 inch

• Price in first year of sale
• 7.35 GBP

• Author
• Model page created by Gerry Howe. See "Data change" for further contributors.
