- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78064
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 114 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org

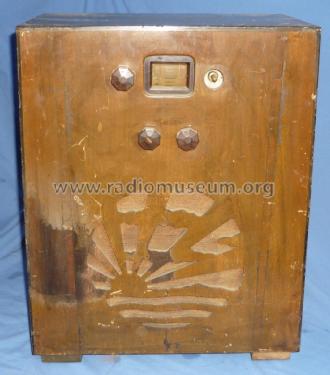

- Model: E/AC - Pye Ltd., Radio Works;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 15 x 20 x 9 inch / 381 x 508 x 229 mm
- Notes
-
Metal Rectifier.
A special 100-110 volt AC mains version was also built.In the same cabinet is the E/DC (DC mains only, no rectifier, series valves) and the battery powered E/B.
This model uses a Pentode as both Mixer and Local Oscillator (Cathode feedback).
Tone control.
Gram/P.U. input is selected on Wavechange.
- Source of data
- Radio! Radio!
- Literature/Schematics (1)
- - - Manufacturers Literature
- Literature/Schematics (2)
- Trader sheet 698
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
