• Country
• Australia

• Manufacturer / Brand
• Pye Electronics Pty Ltd, Melbourne

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196159

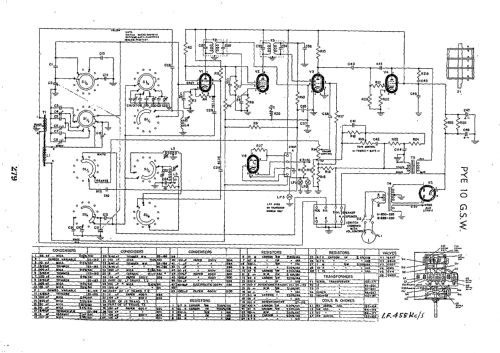

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5 EM80 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-225; 225-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 10 G.S.W. - Pye Electronics Pty Ltd,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Pye 10GSW

  6 Valve A/C world range radiogram with Bandspread (covering the 31, 25, 19 and 16 metre bands). Two speakers; built-in Ferrite rotary aerial, magic eye and automatic (3-speed) record changer. Accoustically correct cabinet in beautiful selected timbers. (MINGAY PRICE SERVICE)

• Price in first year of sale
• 133.35 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XIV

• Mentioned in
• Mingay's Price Service (Nov 1955 to Nov 1956.)

• Literature/Schematics (1)
• J.R. Publications Radio Service Handbook (R.V. Series 1963, Page P203.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 14, 1956 (for 1955 models), Page 279.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
