11 P.B.P.
Pye Electronics Pty Ltd, Melbourne
- Country
- Australia
- Manufacturer / Brand
- Pye Electronics Pty Ltd, Melbourne
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196160
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 200-225; 225-250 / 90 & 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org

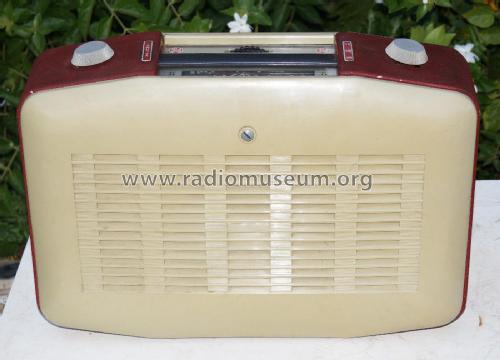

- Model: 11 P.B.P. - Pye Electronics Pty Ltd,
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Different output valves are used for mains and battery operation.
Metal case with plastic front & back.
- Price in first year of sale
- 39.90 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XIV
- Literature/Schematics (1)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P204.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 29 models, 22 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Pye Electronics Pty Ltd, Melbourne
