G/RG Ch= G
Pye Ltd., Radio Works; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1932 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290459
- Number of Tubes
- 3
- Valves / Tubes
- AC/S1VM AC2HL AC/Pen_5pin
- Main principle
- TRF with regeneration
- Wave bands
- Broadcast (MW) and Long Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-215; 215-235; 236-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G/RG Ch= G - Pye Ltd., Radio Works;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The Pye G chassis is a 3-tube regenerative receiver supporting for use on AC Mains, it uses a Metal rectifier.
The band switch has three settings, Long - Gram - Med. Band coverage is LW: 800-2000m (150-375 kHz) and BC: 200-520m (575-1500 kHz). The center setting selects the gramophone input.

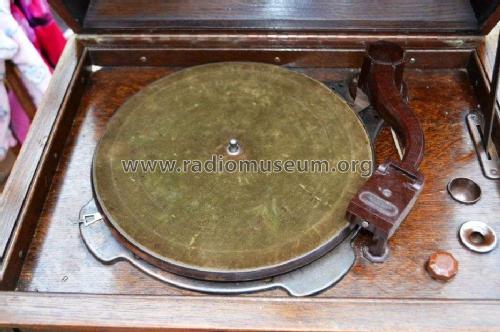

Model G/RG is a Radiogram console including a Collaro 78 rpm gramophone with an AC induction motor. 3 types of motors were available for 25-40 Hz, 40-60 Hz, and 60-80 Hz power supplies.
- Mentioned in
- - - Manufacturers Literature (Pye Manufacturer's Service Data, Feb. 28th, 1933)
- Author
- Model page created by Rodney Boleyn. See "Data change" for further contributors.
