• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 283239

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EBF80 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200 - 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

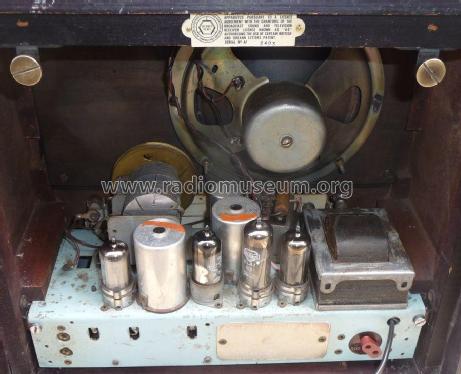

• Model: P43 [Wood Cabinet] - Pye Ltd., Radio Works;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 340 x 310 x 175 mm / 13.4 x 12.2 x 6.9 inch

• Notes

• This model was also made with bakelite cabinet.

• Author
• Model page created by Wolfram Zylka. See "Data change" for further contributors.
