• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97110

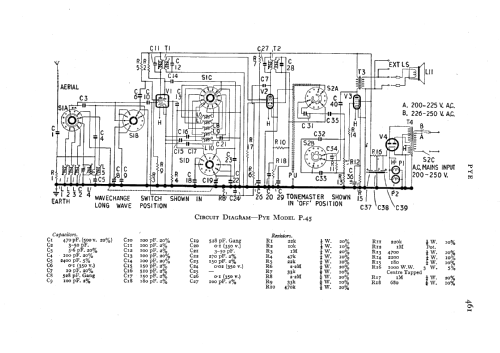

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EBF80 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: P45 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 368.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 629 models, 485 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
