- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1952 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353580
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 40-100 Hz, 100-130, 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: PE66 - Pye Ltd., Radio Works;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 20 x 13 x 10 inch / 508 x 330 x 254 mm
- Notes
-
MW & 7 shortwave bands.
Manufactured for the overseas market.

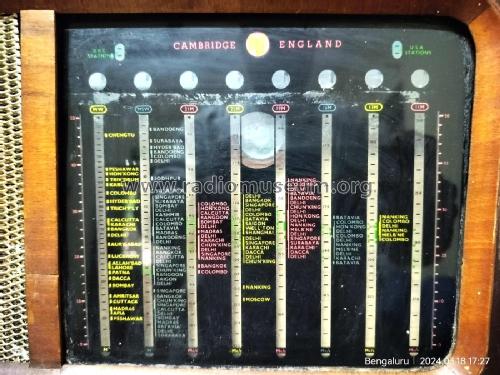

The unusual dial design accommodates the EM 34 magic eye.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Author
- Model page created by Uday Kalburgi. See "Data change" for further contributors.
