PE 301/2CR

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1954 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 339703

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage
  • Wave bands

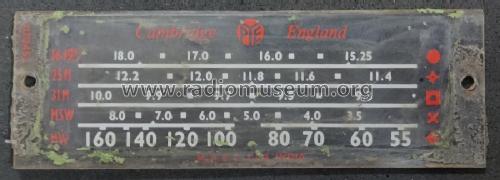

  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 V Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: PE 301/2CR - Pye Ltd., Radio Works;
  • Shape
  • Chassis only or for «building in»
  • Notes

  • This is from a Mercedes Benz car, the chassis and all electronics are from PYE, but assembled here with BEL Valves, which are manufactured in Bangalore.

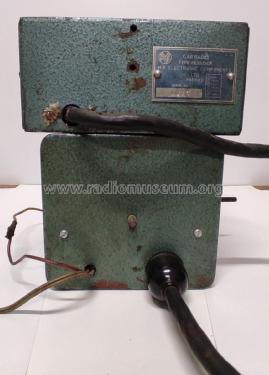

    The Chassis with a metal cover is made by M.R.Electronic Components Limited, Madras ( now called Chennai).

    The EL 84 and EZ80 are in a separate box, connected by a cable/plug. The supply is taken from 12 V Car battery and connected to Mallory G1603S 12 Volt Vibrator.

    See also PE 501 CR

  • Author
  • Model page created by Uday Kalburgi. See "Data change" for further contributors.
