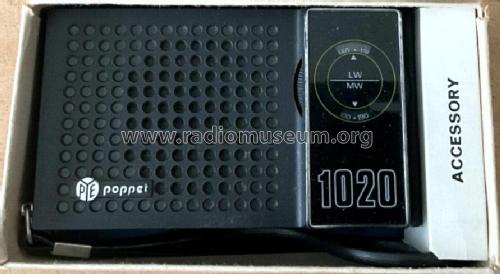

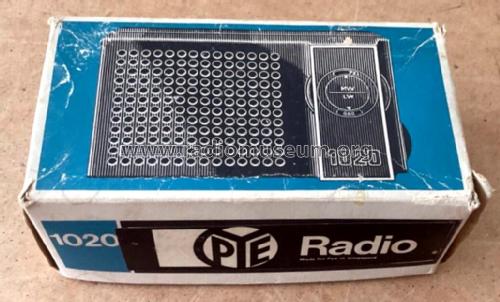

Poppet TA1020/15

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348399

 Technical Specifications

  • Number of Tubes
  • 0
  • Valves / Tubes
  • or or
  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / AA: 2 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Poppet TA1020/15 - Pye Ltd., Radio Works;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 125 x 70 x 38 mm / 4.9 x 2.8 x 1.5 inch
  • Notes

  • Wave change switched on the back of the set has both English and French markings.

    Possibly a European export variant for UK EEC accession year 1973

    Very similar and with the same RF 127 circuit board to the Philips 90RL020

    Made in Singapore

  • Net weight (2.2 lb = 1 kg)
  • 0.224 kg / 0 lb 7.9 oz (0.493 lb)
  • Author
  • Model page created by Clive Forder. See "Data change" for further contributors.
