Wayfarer PT304
Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ekco, E.K.Cole Ltd.; Southend-on-Sea
- Year
- 1968 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119511
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / C: 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Various materials
- from Radiomuseum.org
- Model: Wayfarer PT304 - Ekco, E.K.Cole Ltd.; Southend-
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
A battery powered portable AM/FM 8 transistor radio covering the MW (185-566 metres), LW (1150-2000 metres) and VHF (87-108 MHz) bands. Sockets for external aerial and for connection to a tape recorder. Elliptical loudspeaker 7 x 3⅝ inch.
Similar to the PYE 1372 Venturer and Ferranti 5501 Greyhound models.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

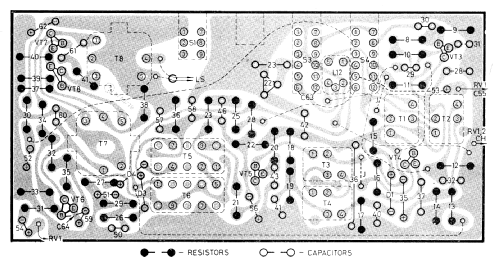

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1889 dated 31 January 1969)
- Author
- Model page created by Mario Coelho. See "Data change" for further contributors.
