Pye Plug Interconnector 10H/628
Pye Ltd., Radio Works; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1939 ??
- Category
- Radio part (not a module)
- Radiomuseum.org ID
- 356122
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Pye Plug Interconnector 10H/628 - Pye Ltd., Radio Works;
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 34 x 20 x 20 mm / 1.3 x 0.8 x 0.8 inch
- Notes
-

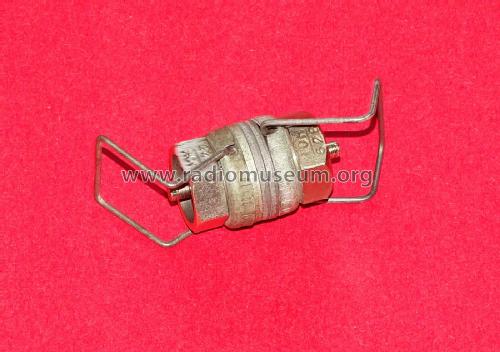

The interconnector (UK Air Ministry stores Ref. No. 10H/628) comprises a pair of back-to-back Pye coax male sockets that allow two female Pye coax plugs to be connected. In addition to special parts, such as a 34 mm long double-ended inner conductor, the interconnector uses some parts of the 10H/528 male chassis socket.
- Net weight (2.2 lb = 1 kg)
- 0.033 kg / 0 lb 1.2 oz (0.073 lb)
- Mentioned in
- mullard.org
- Author
- Model page created by Bruce Taylor. See "Data change" for further contributors.
