• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102383

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• Tr_XXXX or. Yellow_Circle

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

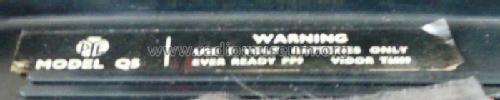

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org

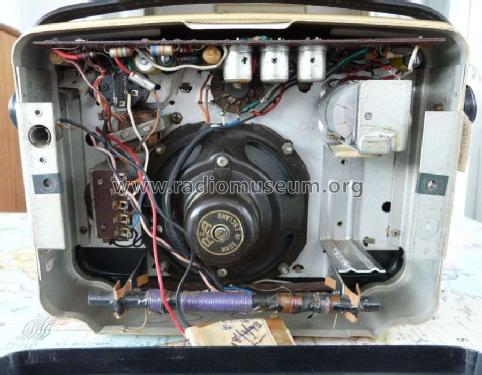

• Model: Q5 [Late ] - Pye Ltd., Radio Works;

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Transistors: "Yellow Circle" numbers 1, 2, 3, 4, 5, 5. Early production used "White Circle" transistors & a 6 volt battery.

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
