• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102387

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCC85 UCH81 UBF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

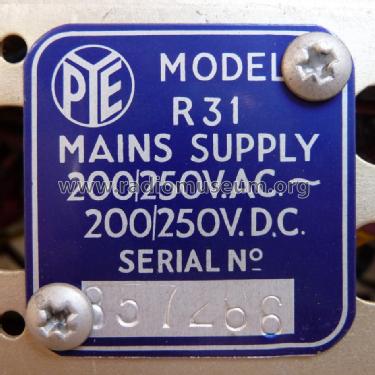

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Caprice R31 - Pye Ltd., Radio Works;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 370 x 220 x 180 mm / 14.6 x 8.7 x 7.1 inch

• Notes

• UKW bezeichnet als V.H.F.

• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
