• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77967

• Number of Tubes
• 6

• Valves / Tubes
• AC/S1VM AC/SG AC/HL AC/S1VM AC/HL AC/Pen

• Main principle
• Superheterodyne (common); ZF/IF 114 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material

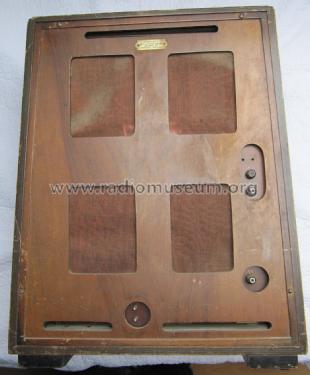

• Wooden case

• from Radiomuseum.org
• Model: S - Pye Ltd., Radio Works;

• Shape

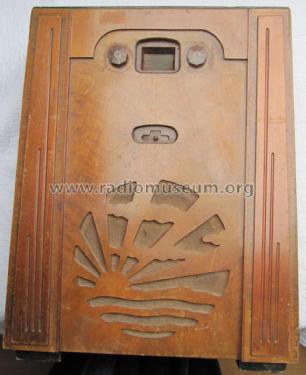

• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 15 x 20 x 9 inch / 381 x 508 x 229 mm

• Notes
• Metal rectifier. There is also a 4 valve battery model G/B in this cabinet.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Mentioned in
• Radio! Radio! (Ed. 1986, p.127)

• Literature/Schematics (1)
• - - Manufacturers Literature

Pye S Receiver Notes, submitted by member Kevin Snoad and used with permission from Ray (G R Heffer) at www.radio-workshop.co.uk.

2506 KB

• Documents regarding this model

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
