• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 249170

• Number of Tubes
• 3

• Valves / Tubes
• PM12M PM1HF or LD210 PM22A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / -1,5; -9; 2; 35; 80; 100 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

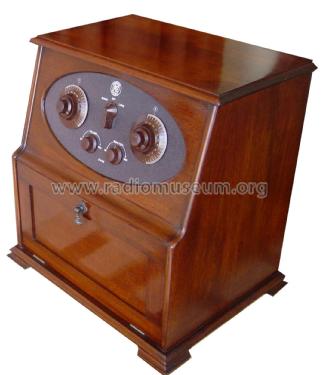

• Model: Screened Three - Pye Ltd., Radio Works;

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 445 x 450 x 370 mm / 17.5 x 17.7 x 14.6 inch

• Net weight (2.2 lb = 1 kg)
• 10.450 kg / 23 lb 0.3 oz (23.018 lb)

• Mentioned in
• PYE 50th Anniversary

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
