Slim Six P128B

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Pye Ltd., Radio Works; Cambridge

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79430

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• V6/R4M V6/R2 V6/R2 V10/50B V10/50B V10/50B

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Slim Six P128B - Pye Ltd., Radio Works;

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 9.75 x 6.75 x 2.25 inch / 248 x 171 x 57 mm

• Notes

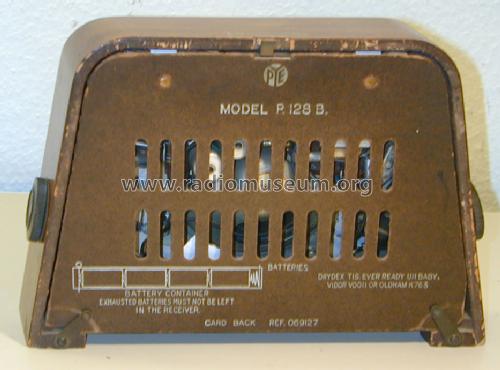

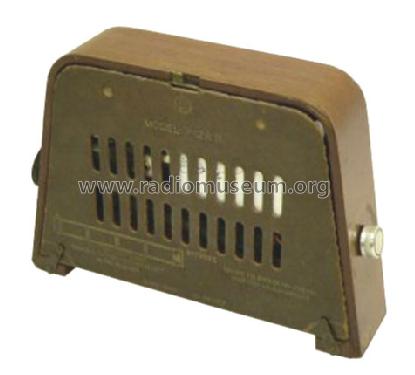

• Pye P.128.B Mantle style indoor transistor radio.

  DC only

• Net weight (2.2 lb = 1 kg)
• 1.030 kg / 2 lb 4.3 oz (2.269 lb)

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
