- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1936/1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109949

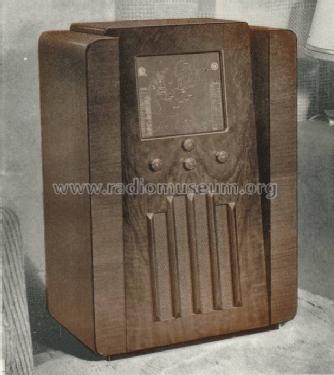

Picture from 1936/7 Pye catalogue.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 127 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9 inch = 22.9 cm
- Power out
- 2.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: T12 - Pye Ltd., Radio Works;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 22 x 32 x 13 inch / 559 x 813 x 330 mm
- Notes
- This radio features a map of Europe on its dial: the stations appear as pinpoints of light as they are tuned in.
- Price in first year of sale
- 22.00 GBP
- Mentioned in
- -- Original prospect or advert (Pye 1936 and 1937 catalogues.)
- Author
- Model page created by Mike Izycky. See "Data change" for further contributors.
