- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102392

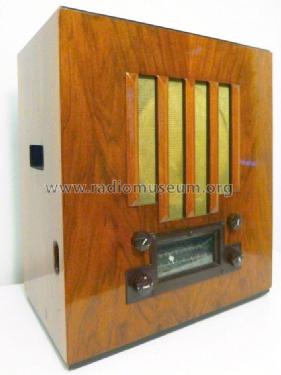

Picture from Pye 1936 catalogue.
Click on the schematic thumbnail to request the schematic as a free document.

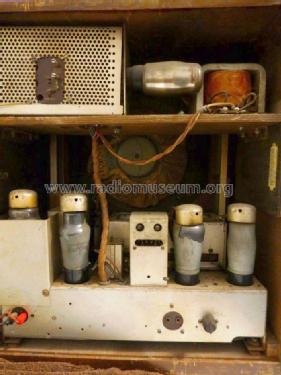

- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 127 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (unknown quality)

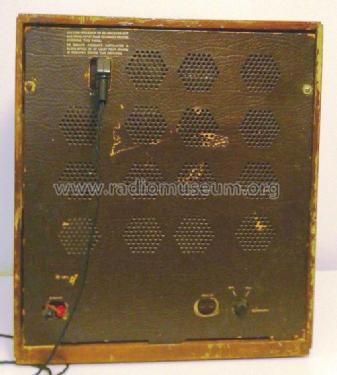

- Material
- Wooden case
- from Radiomuseum.org
- Model: T20 - Pye Ltd., Radio Works;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 17 x 19.2 x 10.2 inch / 432 x 488 x 259 mm
- Notes
- Transportable AC superhet. Built-in tuned frame aerial. Dial lamps: 2x 6,2V/0,3A.
- Price in first year of sale
- 17.00 GBP
- Source of data
- -- Original prospect or advert
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (150)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
