- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1956 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 102396
PYE TCR 14 tuner unit
Inside view 1
Inside view from underside

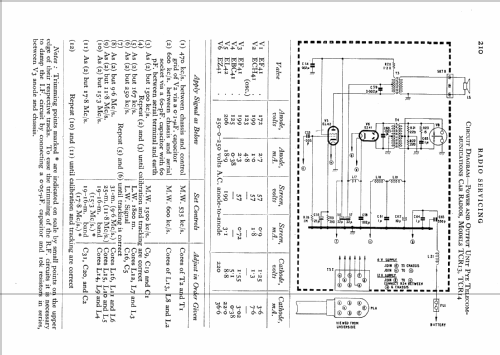

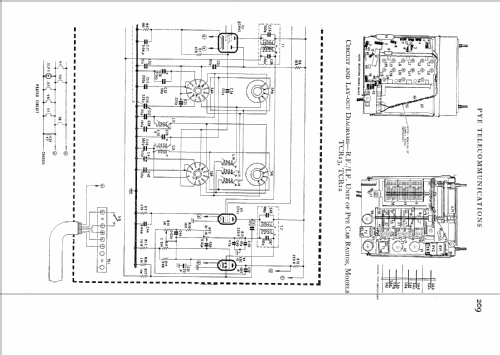

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: TCR14 - Pye Ltd., Radio Works;
- Shape
- Chassis only or for «building in»
- Notes
- 5 wavebands.
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
