- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110082

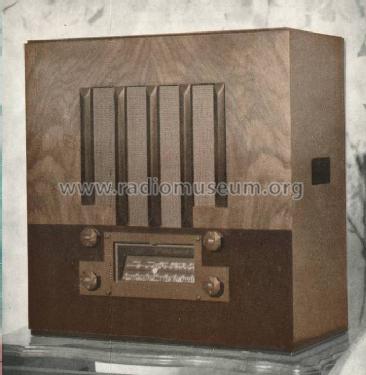

Picture from Pye 1935/6 catalogue.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 inch = 22.9 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: TP/B - Pye Ltd., Radio Works;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Price in first year of sale
- 16.00 GBP
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)

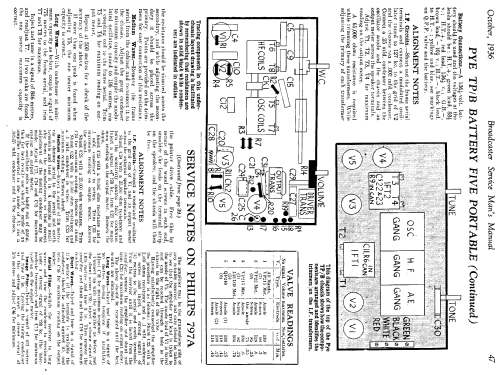

- -- Original-techn. papers.
- Author
- Model page created by Mike Izycky. See "Data change" for further contributors.
