Typhoon 1413

Pye Ltd., Radio Works; Cambridge

Data
Forum
Pictures
Collections

  • Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 330969

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 240 / AA: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Typhoon 1413 - Pye Ltd., Radio Works;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

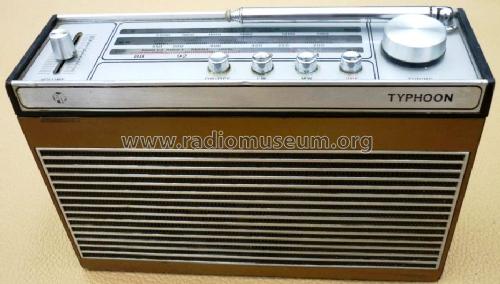

  • A mains/battery 3 band AM/FM portable transistor radio. Telescopic antenna, sockets for earphone and tape recorder. Supplied with mains lead and earphone.

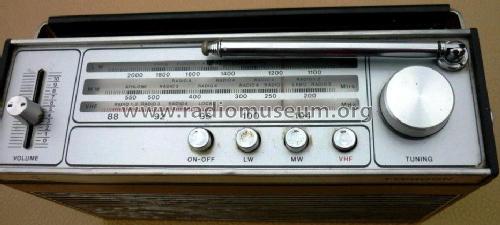

    Waveband Coverage:
    LW 143-283 kHz. (2100-1060 metres)
    MW 510-1648 kHz. (588-182 metres)
    VHF 87.5-104 MHz.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (PYE service sheet model 1413 AM/FM Transistor Portable dated 3/73)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
