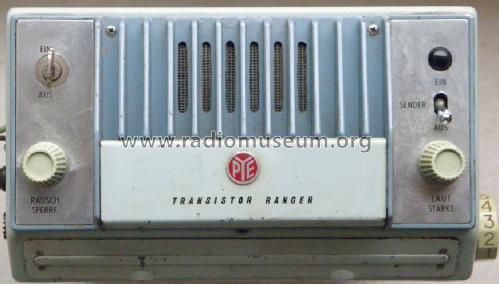

VHF Radio Telephone Ranger PTC8007 Transistor
Pye Ltd., Radio Works; Cambridge
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pye Ltd., Radio Works; Cambridge
- Year
- 1960 ??
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 224748
- Number of Tubes
- 21
- Valves / Tubes
- 6AL5 6AQ4 6AQ4 6AQ4 6AQ5 6AV6 6BH6 6BH6 6BH6 6BH6 6BH6 6BH6 6BJ6 6BN6 6CB6 6U8 12AT7 12AX7 12AX7 QQV03-10 QQV03-10
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12; 24 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: VHF Radio Telephone Ranger PTC8007 Transistor - Pye Ltd., Radio Works;
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 235 x 140 x 350 mm / 9.3 x 5.5 x 13.8 inch
- Notes
-
PMR (Privat Mobilfunk-, Zwei-Wege-Radio) für Fahrzeuge. Sender und Empfänger mit Röhrenbestückung, Anodenspannung durch eingebauten Transistor-Wechselrichter erzeugt.
Die Transistor Ranger-Serie umfasst Geräte für den Frequenzbereich 25 bis 174 MHz, mit AM- oder FM-Modulation und unterschiedlichen Sendeleistungen und Kanalabständen. Max. 6 Kanäle (Steckquarze).
Die Variante PTC8007/N-2M ist ein FM-Gerät für das 2 m-Band, deutsche Zulassung FTZ-Nr. D-319/61.PMR (private mobile radio, two-way radio) for vehicles. (Transmitter and receiver with valves).
HT voltage generated by built-in transistor inverter. The transistor Ranger series includes units for the frequency range 25 to 174 MHz, with AM or FM modulation and different power levels and channel spacing. Up to 6 channels (plug-in crystals). The N-2M variant of PTC8007, the PTC8007/N-2M has FM for the 2m band, German FTZ approval no. D-319/61.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
