- Country
- Canada
- Manufacturer / Brand
- PYE Canada, Ontario
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175900

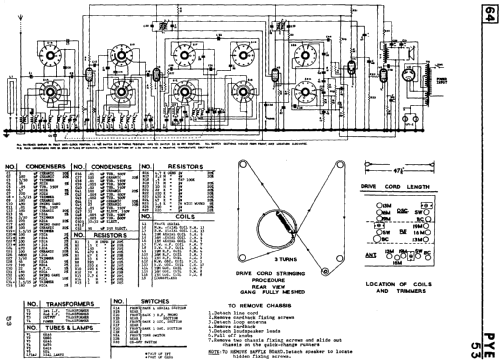

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 53 - PYE Canada, Ontario
- Notes
- Built-in loop antenna.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- Pye Suppl. Pages 64, 65
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
